5.10 Custom Indicators (Scripting)

6 min read

Built-in indicators are great, but at some point most serious traders hit a limit:

  • You want to combine multiple signals into one tool.

  • You want to adapt a public idea to your own rules.

  • You’ve developed a personal way of reading price that no standard indicator reflects.

That’s where custom indicators come in.

In Flows.Trading, a custom indicator is simply JavaScript code that reads candles, performs calculations, and draws on the chart using a dedicated API.
You are free to:

  • Implement your own logic (trend, structure, Smart Money concepts, volatility filters, etc.)

  • Reproduce indicators you’ve seen elsewhere

  • Build fully proprietary tools that exist only in your environment

The scripting engine is JavaScript-based, so if you know basic JS (variables, arrays, loops, functions), you’re already most of the way there.

2. The Custom Indicator Editor #

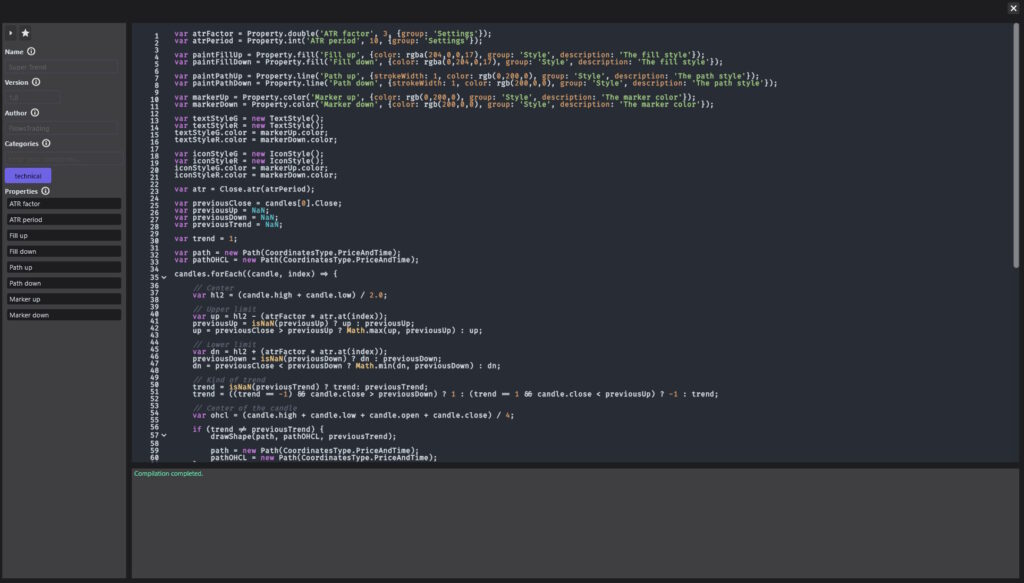

When you click “New…” or open an existing custom indicator, the code editor appears (as in your screenshot).
It is made of several key areas:

  • Compile button (>):
    Runs and validates your code. The indicator is only updated on the chart after a successful compile.

  • Favorite toggle (⭐):
    Marks the indicator as a favorite so it appears quickly in filtered lists.

  • Metadata panel (left side):

    • Name – the indicator’s display name

    • Short Name – optional compact label

    • Version – your internal version number

    • Author – usually prefilled (e.g. FlowsTrading or your username)

    • Categories – tags like technical, oscillator, volatility, structure to help filtering

    • Properties list – the user-facing settings you expose (e.g. “ATR period”, “Color up”, etc.)

  • JavaScript code area (center):
    Where indicator logic is written. This is a standard JS environment with additional built-in classes and functions.

The usual workflow:

  1. Edit code
  2. Click > Compile
  3. Fix any errors (if needed)
  4. Once compilation succeeds, attach the indicator to a chart via the indicator list (+ button)

3. Core Data Model #

3.1 Candles #

Your script runs with access to a list of candles:

  • timestamp

  • open, high, low, close

  • volume

  • isBull

This is the raw data your indicator will work on.

3.2 DataFrames – Working With Series #

Indicators typically operate on time series (one value per candle).
In Flows.Trading these series are represented by the DataFrame type.

A DataFrame lets you:

  • Store and iterate over values

  • Perform arithmetic (+, -, *, /) with constants or other series

  • Apply rolling functions (sum, averages, highest/lowest, etc.)

  • Compute classic TA series (EMA, SMA, WMA, RMA, RSI, ATR, True Range…)

  • Detect structure (pivot highs/lows)

Common predefined series:

  • Close – close prices for all candles

  • Open – open prices

  • High – highs

  • Low – lows

Examples of what you can express:

  • Close.ema(20) – 20-period exponential moving average of closing prices

  • Close.rsi(14) – RSI(14) based on closes

  • High.highest(50) – highest high over the last 50 bars

  • Close.change(1) – bar-to-bar change

You can combine these series with arithmetic or your own logic to build more advanced indicators.

4. Styling and Coordinates #

Your indicator can draw lines, shapes, areas, text, histograms and icons on the chart.

4.1 Coordinate Types #

Two coordinate systems are available:

  • PriceAndTime – coordinates are given in chart units (timestamp + price).
    Use this for anything that must follow price and time, like moving averages or bands.

  • Screen – coordinates are given in screen pixels.
    Use this for overlay elements that should not scale with the chart (fixed labels, HUD-style elements).

4.2 Style Classes #

To control appearance, the API provides several style classes:

  • Paint

    • Line or fill style (stroke width, color)

    • Used for paths, lines, rectangles, fills, histograms

  • TextStyle

    • Text color, font size, bold/italic

    • Used with text drawing functions

  • IconStyle

    • Icon color and size

    • Used when drawing icons

  • Offset

    • Optional x/y adjustment relative to a base coordinate

    • Useful to avoid overlapping labels or shift text slightly away from the bar

You create an instance, customize its fields (e.g. color, thickness), then pass it to the drawing functions.

4.3 Icons #

The Icons collection exposes a set of prebuilt icon codepoints:

  • Directional arrows (up/down/left/right)

  • Alternate arrows

  • Shapes (star, circle, square, cross)

  • Symbols (target, rocket, heart, lightbulb, hourglass, etc.)

You use these when calling drawIcon to display visual signals on the chart.

5. Paths & Histograms #

Some visual elements are more complex than a simple line.

5.1 Path #

A Path represents a sequence of points:

  • Can be built in screen or price/time coordinates

  • You can append points manually (add(x, y)) or build directly from a DataFrame (one point per candle)

Use with:

  • drawPath(paint, path) – draw the line

  • drawFill(paint, path) – fill the area inside the path

Typical use cases:

  • Moving average lines

  • Bands and envelopes

  • Custom shapes following price

5.2 Histogram #

A Histogram represents a series of vertical bars:

  • Each bar has a position (usually time), height, and optional color

  • Works well for volume-like or oscillator-style plots

Use with:

  • drawHistogram(paint, histogram)

6. Drawing Functions #

Once you’ve computed what you want to display, you use drawing functions to render it on the chart.
Internally they send messages to the platform — you only need to call them with the right parameters.

The main functions are:

  • drawLine(paint, x1, y1, x2, y2, offset1?, offset2?)
    Draws a straight line between two points.

  • drawPath(paint, path)
    Draws a multi-point path (lines connecting each point).

  • drawFill(paint, path)
    Fills the area inside a path.

  • drawHistogram(paint, histogram)
    Draws vertical bars (e.g. for volume or custom bar-style plots).

  • drawHLine(paint, y)
    Draws a horizontal line at a specific price level.

  • drawRectangle(paint, x1, y1, x2, y2, offset1?, offset2?)
    Draws a rectangle between two coordinates.

  • drawTextAt(textStyle, x, y, text, offset?)
    Renders text at a specified coordinate.

  • drawIcon(x, y, codepoint, iconStyle?, offset?)
    Draws an icon using a symbol from the Icons set.

For anything that should follow price/time, pass coordinates in PriceAndTime; for overlays, use Screen.

7. Properties – Making Your Indicator Configurable #

You rarely want an indicator to be “hard-coded”. Periods, colors, and switches should be adjustable by the user.
That’s the role of the Property helper.

Each static method on Property:

  1. Declares a property (with a name, default value, and optional group/description).
  2. Returns its current value (either default or user-defined).

Supported property types include:

  • Property.bool(name, defaultValue, options)

    • For ON/OFF toggles.

    • Options: group, description.

  • Property.int(name, defaultValue, options)

    • For integer inputs (periods, lengths…).

    • Options: group, description, min, max.

  • Property.double(name, defaultValue, options)

    • For floating-point values (factors, sensitivities).

  • Property.string(name, defaultValue, options)

    • For free-text values or dropdown selectors (when combined with UI support).

  • Property.options(name, defaultValue, optionsArray, options)

    • For predefined option sets (e.g. mode: “Fast / Normal / Slow”).

  • Property.line(name, styleOptions)

    • Returns a Paint configured for line drawing.

    • styleOptions: strokeWidth, color, group, description.

  • Property.fill(name, styleOptions) / Property.color(name, styleOptions)

    • Returns a Paint for filled areas or colors.

Example of usage (conceptual):

  • “Fast length” (integer, Settings group)

  • “Show signals” (boolean, Visibility group)

  • “Up color” / “Down color” (line/fill properties, Style group)

These appear automatically in the indicator’s Properties UI and in the editor sidebar under Properties.

8. High-Level Example (Conceptual) #

A typical custom indicator script will:

  1. Declare properties for lengths, styles, and options.
  2. Read price data from Close, High, Low, etc. as DataFrames.
  3. Apply transformations (EMA, ATR, RSI, highest/lowest, etc.).
  4. Prepare style objects (Paint, TextStyle, IconStyle).
  5. Build shapes (Paths, Histograms) representing the indicator.
  6. Draw them on the chart with drawPath, drawFill, drawTextAt, drawIcon, etc.

For example:

  • Compute a custom trend line from Close.ema(20) and Close.ema(50).

  • Draw both EMAs using Path.fromDataFrame and drawPath.

  • Detect crossovers and plot icons on the candles where they occur.

  • Expose lengths and colors as Property.int / Property.line so you can tune them from the UI.

You decide how simple or complex the logic becomes.

9. Best Practices #

  • Start simple. Begin with a moving average variant or a basic signal before building complex models.

  • Expose properties. Don’t hardcode everything — make the indicator adaptable.

  • Keep performance in mind. Avoid unnecessary loops; prefer DataFrame methods when possible.

  • Document your code. Comment your logic so future you understands what each block does.

  • Test across markets and timeframes. Indicators can behave differently in FX, crypto, stocks, or low-liquidity assets.

10. Summary #

Custom indicators in Flows.Trading let you:

  • Work directly with candle data through high-level DataFrame utilities

  • Draw rich visual output via paths, histograms, text, and icons

  • Style everything using Paint, TextStyle, IconStyle, Icons, Offset

  • Expose flexible properties for user customization

  • Use familiar JavaScript syntax for logic and control flow

They are the bridge between your trading ideas and a living, visual implementation on the chart.
